Black Annealed Wire

Inquire Now

Product details

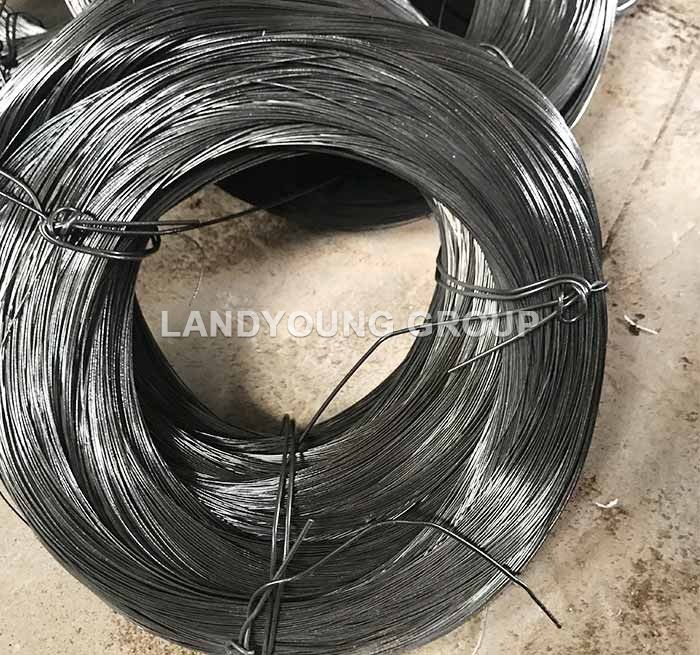

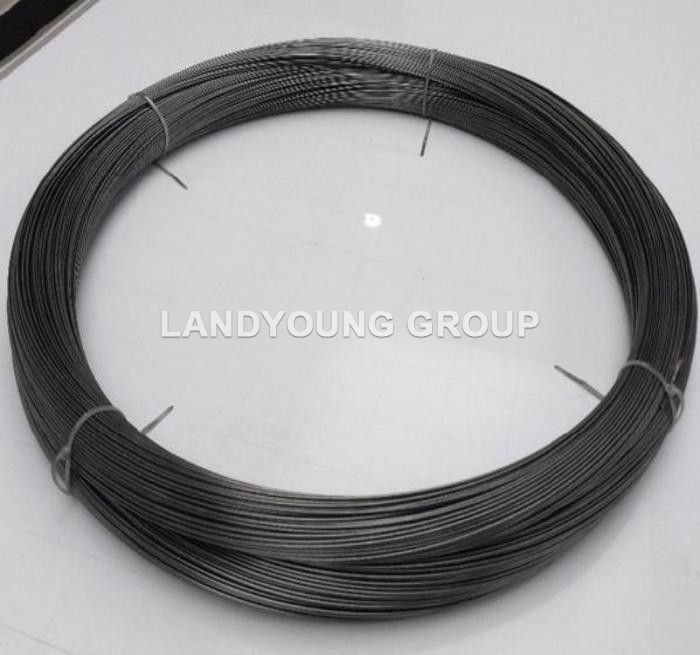

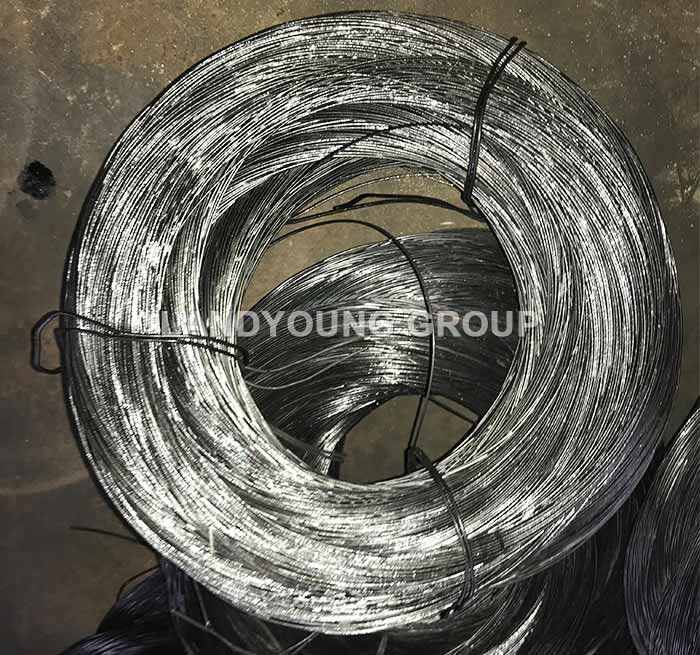

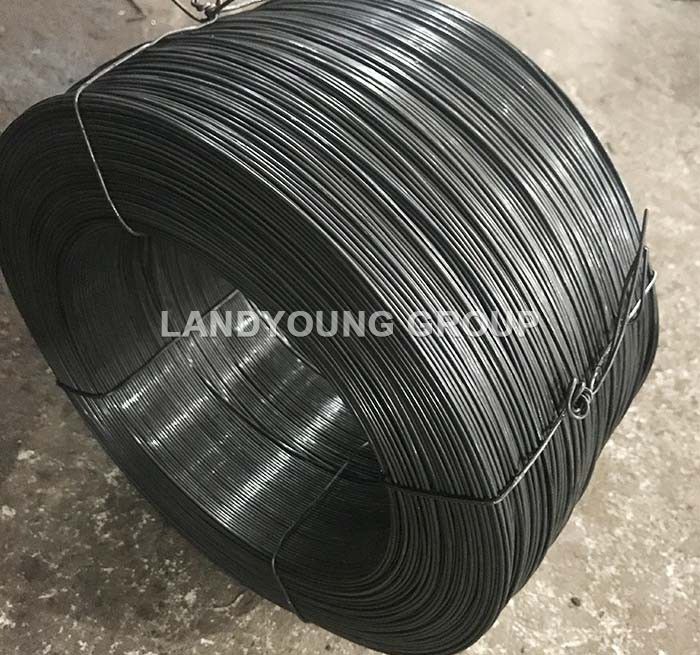

Black Annealed Wire

Brief introduction

Black annealed Wire is made of carbon steel wire. Black Iron Wire, also known as oil painted black iron wire or black mild steel wire, Black annealed wire, coil wire or cut wire is a kind of iron wire without any processing. Black iron wire is softer, more flexible, uniform in softness and consistent in black color. Mainly used in construction, mining, chemical and so on.After wire annealing, the wire elongation increases. The rion wire becomes softer and increases the applicable range of iron wire. The black iron annealed wire can be electro galvanized, hot-dip galvanizing, electroplating copper, etc., it is widely used in wire mesh production,Post plating, first plating, etc

black soft annealed wire, bright soft annealed wire.the most popular sizes are 16 G, 18 G, 19 G, 20 G and 22 G. we Pack the black soft annealed wire in coil, by spool, or can be cut into sizes for binding/bundle.

Quick details

Products	Black Annealed Wire
Material	SAE1006; SAE1008; Q195;
Diameter	from 0.5mm to 6.00mm
Tensile	30--70kg/mm2
Elongation	10%--25%
weight	1kg-800kg/coil
packing	plastic film inside hessian outside plastic film inside and woven bag outside In wooden case and as customers’ inquiry

Features:

Various kinds of diameter

Various kinds of coil or spool

Various kinds of shape or length

Excellent flexibility and softness

Strong oxidation resistance

Made of high quality material

Clean and tidy environment

Excellent annealing technology

Application:

Annealed Wire is made of carbon steel wire, used for weaving, baling in general. Applied for home use and the construction.

Widly used as tie wire or binding wire in construction
wire mesh production and civilian industry product production.
We can make it into straight cutting wire, U type wire and so on according to customer’s special requirements.

Technology

Black annealed wire is made of low-carbon steel cold drawn, heated, constant temperature, insulation and other processing into a soft wire products. The use of wire is different, the composition is different, it contains the ingredients are: iron, cobalt, nickel, copper, carbon, zinc, and other elements. The hot metal blanks rolled into 6.5mm thick steel bar is the wire rod, and then into the drawing device into a different diameter of the line, and gradually reduce the diameter of the drawing plate, cooling, annealing, coating and other processing Craft made of a variety of different specifications of the wire.

Specification

Black iron wire gauge is mainly from 8 G to 38 G (wire diameter from 0.15 mm to 4.5 mm). Another size can accepted as customers' requirements.

Wire Gauge Size	SWG(mm )	BWG(mm)	BG(mm)
6 Gauge	4.87	5.15	5.032
7 Gauge	4.47	4.57	4.481
8 Gauge	4.06	4.19	3.988
9 Gauge	3.66	3.76	3.551
10 Gauge	3.25	3.40	3.175
11 Gauge	2.95	3.05	2.827
12 Gauge	2.64	2.77	2.517
13 Gauge	2.34	2.41	2.24
14 Gauge	2.03	2.11	1.994
15 Gauge	1.83	1.83	1.775
16 Gauge	1.63	1.65	1.588
17 Gauge	1.42	1.47	1.412
18 Gauge	1.22	1.25	1.257
19 Gauge	1.02	1.07	1.118
20 Gauge	0.91	0.89	0.996
21 Gauge	0.81	0.813	0.887
22 Gauge	0.71	0.711	0.749
23Gauge	0.61	0.025	0.707
24Gauge	0.56	0.022	0.629
25Gauge	0.51	0.02	0.56
26Gauge	0.46	0.018	0.498

Note:Special specification can be customized , if need,welcome to contact us!

Product overview

Bright soft annealed wire is a soft wire made of low carbon steel by cold drawing, heating,

Black soft annealed wire Soft, pliable wire which is great for all your tying needs.

Strong enough to wrap securely around rebar, but soft enough for twisting.

Comes in a convenient square center to fit belt worn dispenser.

China Carbon Steel Black Annealed Wire manufacturer and supplier, we provide Carbon Steel Black Annealed Wire to overseas buyers at most competitive price with good quality and on-time delivery. We have reached the pinnacle of success and earned a reputed name by providing the high-quality range of Black Annealed Binding Wire.For additional information about our product offerings or assistance choosing one for your needs, contact us or request a quote today.
