PVC Coated iron Wire

Inquire Now

Product details

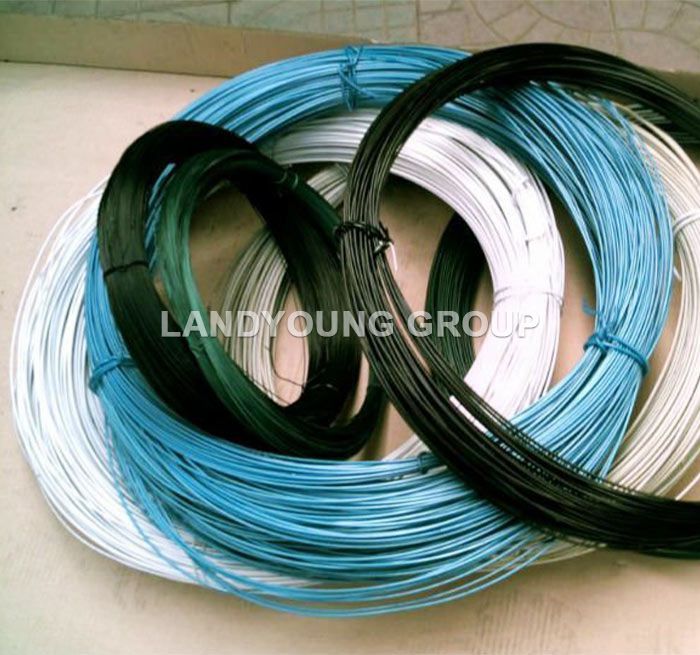

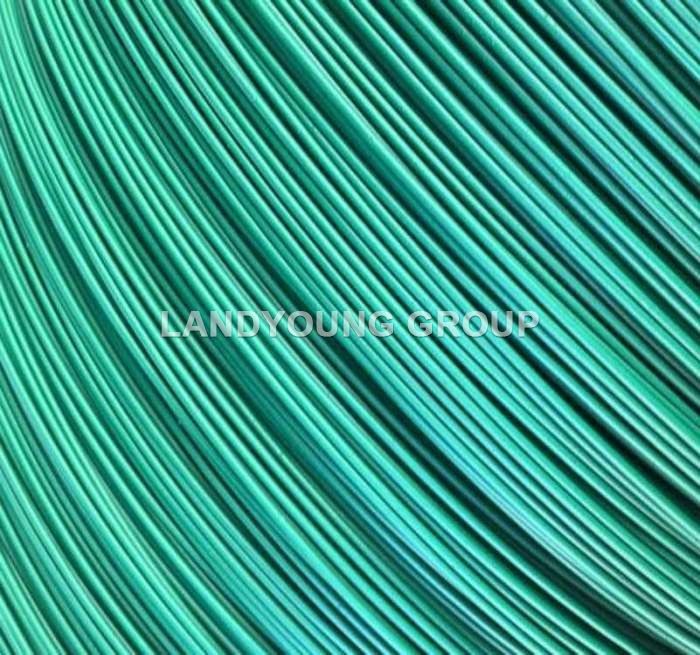

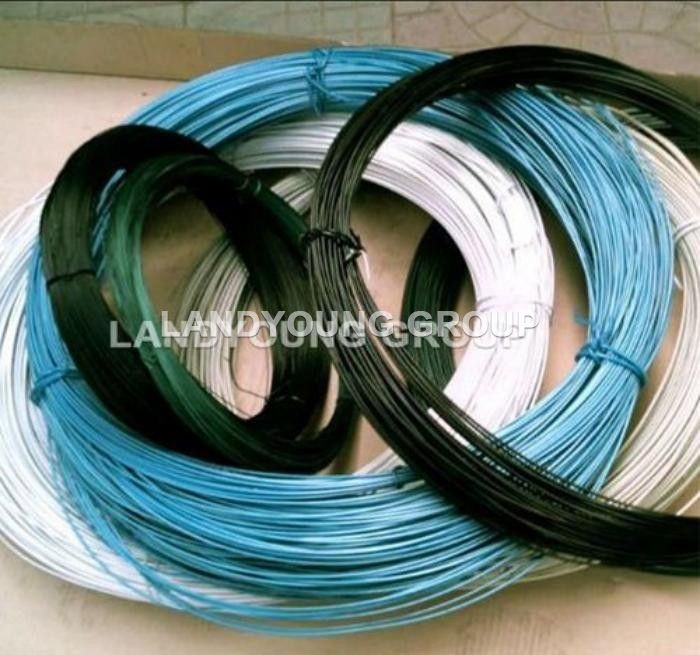

PVC Coated Iron Wire

Brief introduction

PVC coated iron wire is a layer of polyvinyl chloride or polyethylene attached to the surface of annealed wire, galvanized wire and other materials. The coating firmly and evenly adheres to the metal wire, forming anti-aging, anti-corrosion, anti-cracking and long life. pvc covered wire can be used as bundling wire for daily life bundling and industrial bundling. pvc covered wire can also be used for wire frame or craft production.PVC Coated Wire is made from high quality iron wire. PVC is the most popular plastic for coating wires,as it is relatively low in cost,resilient,fire retardant and possesses good insulating properties.Common colors available for PVC coated wire are green and black. Other colors also available on request.

Quick details

Products	PVC Coated Iron Wire
Specification	0.8mm/1.2mm-3.0mm/4.0mm
Tensile strength	350mpa-550mpa (SOFT) 600Mpa-900Mpa(HARD)
Elongation	8% - 15%
Coating type	PVC, PE (on request)
Coating Color	green, black, white, gray etc on request
Weight	1kg-500kg/coil
Package	plastic inside and hessian woven outsidePlastic inside and nylon woven outside
Application	industrial security fences, animal cultivation, stadium, freeways and tennis courts.

Features

Prevent steel wire agingstrong corrosion resistanceprevent steel wire crackingLong service lifeFlexibility Different diameter Different weight of box or cartonRust-resistantDifferent colors

Application

It is widely used in animal breeding, agriculture and forestry protection, aquaculture, parks, zoo pens, stadiums and so on.The most popular use for PVC coated wire is in the construction of chain link fences for industrial security fences, freeways and tennis courts. It is also used in other applications such as coat hangers and handles.

Technology

Wire gauge	8#-24#, 4mm-0.55mm
Plastic thickness	0.4mm-1.0mm
Wire tolerance	+0.05mm/-0.05mm Max
Coat	PVC, vinyl or PE (on request)
Color	green, black, white, grey and etc (on request).
Tensile strength	350N/MM2-550N/MM2(soft)600N/MM2-900N/MM2(hard);
Elongation	8%-15%

Specification

Specification of PVC Coated Wire
Inner Core wire: Galvanized wire, black iron wire, Stainless steel wire, etc
Core wire diameter	Diameter after coated
0.5mm	1.0mm
1.0mm	1.5mm
1.5mm	2.0mm
2.0mm	3.0mm
2.5mm	3.5mm
3.0mm	4.0mm
3.5mm	4.5mm
4.0mm	5.0mm
Packing:
1. lined with P.V.C strips and wrapped with PVC or hessian cloth

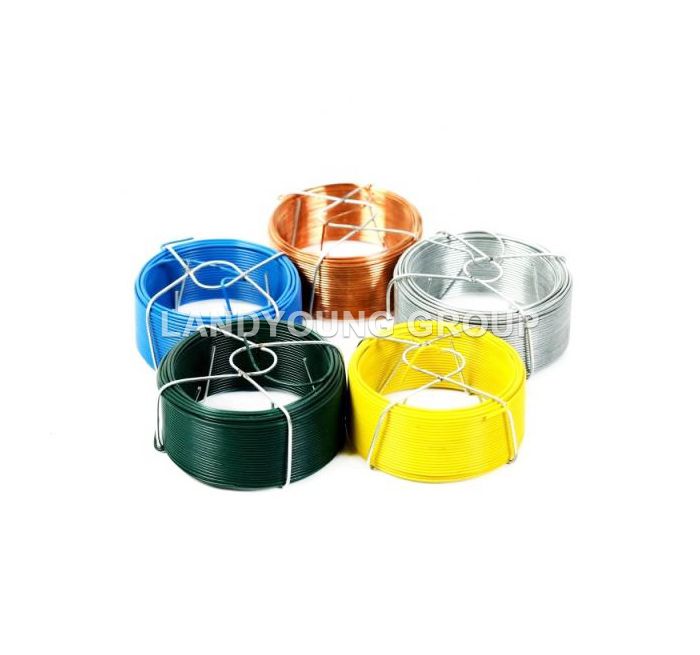

2. small coils of 50m, 100m, 150m, 200m, and so on
3.Color: RAL 6005, 6009 etc.
4.Diameters: many others available as per buyers' request.

Note:Special specification can be customized

If you are interested in our products, please feel free to contact us.
