square wire mesh

Product details

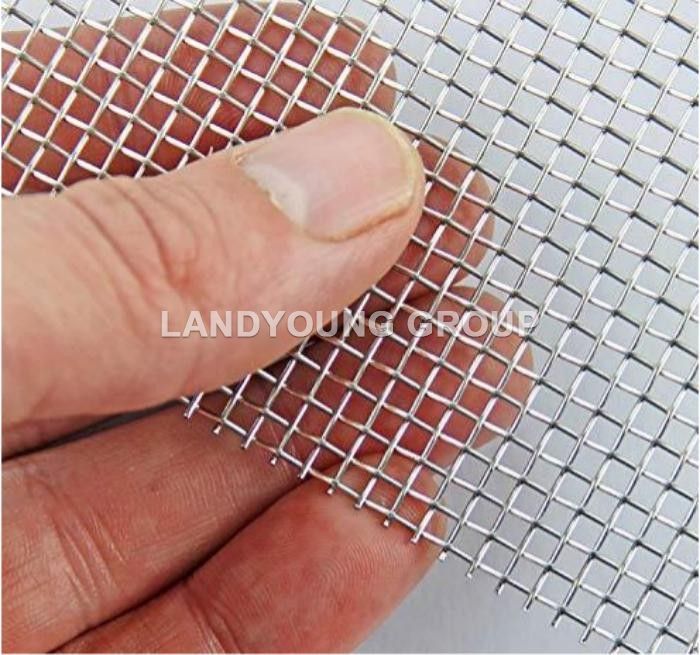

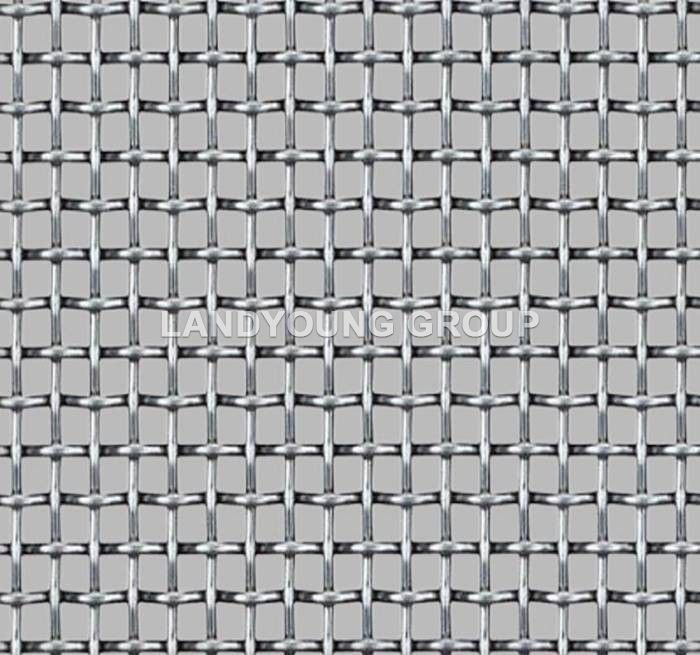

 Square Wire Mesh


Brief introduction

Square wire mesh normally is also called square hole mesh, as heat mesh, floor heating mesh, inner wall insulation mesh, brick belt mesh, etc

Square wire mesh includes galvanized wire mesh, stainless steel wire mesh,aluminum wire mesh, black wire mesh and PVC coated wire mesh..

Galvanized square wire mesh is made of high quality low carbon steel wire, including electro galvanized and hot dipped galvanized.

To meet the needs of the customers, we also manufacture the stainless square wire mesh and aluminium square wire mesh etc.

The square wire mesh is always used for safety guards on machinery, construction walls, insect mesh and ceilings, poultry fence and all kind of sieves, etc.


Features

Low cost, beautiful appearance , Structural precision, uniform mesh, good crossion resistance strong and durable.


Application

Widely used in industry, construction industry, coal mining sand, screening materials, filtering liquid and gas, mechanical ventilation, safety protection and so on.


Technology


                                                                Square wire mesh
MaterialElectro galvanized wire,electro galvanized before(or after) weaving

hot dipped galvanize wireHot dipped Gal. before/after Weaving

Aluminum wirenull

stainless steel wirenull

Pvc coatednull

Black square wire meshnull
MeshNormally 3--60mesh
Wire diameter0.5--6.5mm
Length10--50m
Width0.5--1m/roll  Support customer customization
Character structural precision,uniform mesh,good crossion resistancestrong and durable.
typeWeave
Advantagefine rust-resisting and durable function

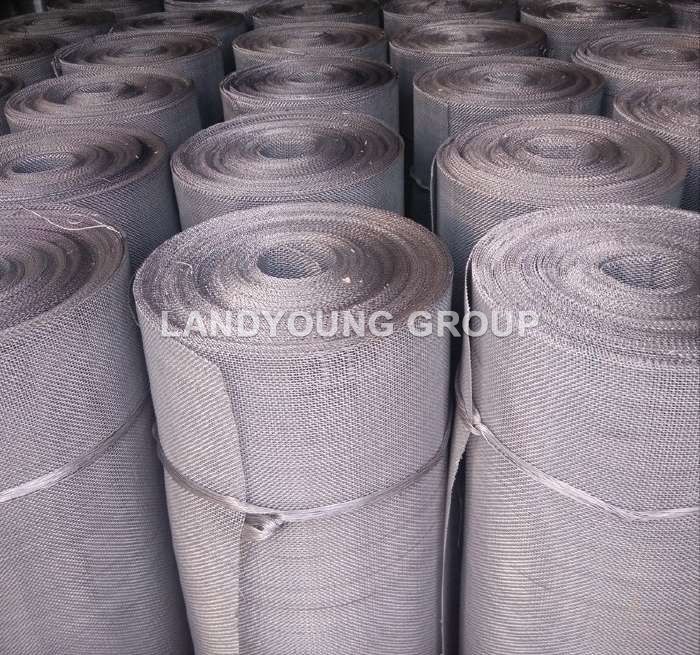

Packing each roll wrapped with waterproof paper inside and then two rolls in a white weaving


Specifications

Mesh/inchWire Dia. (mm)Aperture (mm)
21.6011.10
41.205.15
51.004.08
60.803.43
80.602.57
100.551.99
120.501.61
140.451.36
160.401.19
180.351.06
200.300.97
300.250.59
400.200.44
500.160.35
600.150.27
Support customer customization
